Mx Winch
from Mt Sopris
The MX winch series comprises of a motorised medium sized spool with integrated controller and can support 500m of single conductor wireline.

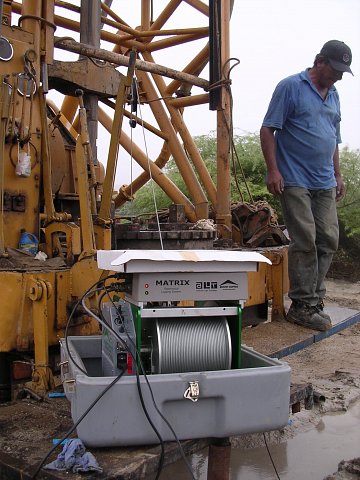

The four-quadrant motor speed controller enables the winch to sustain a constant bailing speed with varying loads. The winch can be supplied with varying types and gages of wirelines including coax, single and multi-conductor cables. A level wind mechanism automatically wraps the cable onto the drum and also includes a rotary encoder to track the amount of cable released. The MX winch can be fitted with the MATRIX or BBox console to offer a complete logging solution. The MX winch is supplied mounted within a rugged transit case for easy transportation or can be mounted within a vehicle.
As with all Mount Sopris winches the MX winch series can support all Mount Sopris and ALT borehole logging tools and many third party tools.
Product Dimensions
| Physical | Dimensions (L x W x H) | Weight |
|---|---|---|
| Mx Winch (instrument only) | 40.6cm x 52cm x 38.8cm | 70kg (with 500m single conductor cable) |
Technical Specifications
| Motor: | ¼ hp, SCR type |
|---|---|
| Controller: | 4 Quadrant, with current limit. |
| Depth Encoder: | BEI Model H20 (200 pulses/turn). |
| Wireline Tolerance: | Supports Coaxial, Single and Multi- Conductor Wirelines. |
| Cable off-axis Tolerance: | 10º left, 10º right, 12º down, 45º up |
| Speed Range: | Low Gear: 9.14m/min 272kg load. High Gear: 27.4m/min 113kg load. |
| Cable Capacity: | 4MXA w/500m of 3.17mm dia. Cable: 70 kg 4MXB w/305m of 4.76mm dia. Cable: 98 kg 4MXC w/1000 m of 3.17mm dia. Cable: 105 kg |
| Temperature: | -20 to 50 ºC |
| Load: | 46kg. |
| Power: | 600W @220V |
Shipping
| Contents | Dimensions (L x W x H) | Weight |
|---|---|---|
|
Case1
MX Winch |
66cm x 66cm x 61cm | 70kg (with 500m single conductor cable) |
|
Case2
Gamma Probe |
144cm x 40cm x 27 | 25kg |
|
Case3
Matrix Logger , laptop, software, tools & ELOG isolation bridle (if required) |
80cm x 50cm x 30cm | 40kg |
|
Case 4
Tripod |
140cm x 45cm x 20cm | 20kg |
|
Case4
Voltage Regulator |
65cm x 45cm x 36cm | 35kg |
Shipping Notes:
All items will be consolidated onto a standard pallet (100cm x 120cm x 80cm) 200kg.
