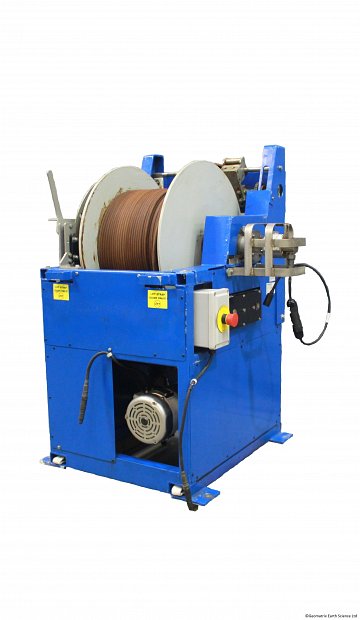

CSW-7V Electric Winch
from A.G.O
The robust simple design of the CSW-7V Electric Winch makes it the ideal tool for deploying a variety of geophysical and oceanographic instruments. compatible with a wide most standard telemetry systems the CWS-7V is a flexible easy to deploy medium sized winch.
Features
- Dog clutch for freewheeling capability
- Remote.
- Integrated electric brake between the gearbox and motor
- Manual disc brake and shear pin lock
- Manual hand crank
- Typical drum capacity up to 300 m of 0.32” /8.2mm Rochester Coax Cable (DC Setup)
Product Dimensions
| Physical | Dimensions (L x W x H) | Weight |
|---|---|---|
| CSW-7V Electric Winch (instrument only) | 85cm x 76cm x 115.5cm | 155kg |
Technical Specifications
| Power: | 2HP 2500RPM 180VDC Washguard motor. |
|---|---|
| Cable: | Fitted with 286m of 8.81mm double armoured Coaxial cable. |
| Line Speed: | At core - 15.3 m/minute. At full drum - 21.2 m/minute. |
| Power source: | Single phase 3kW source. |
Shipping
| Contents | Dimensions (L x W x H) | Weight |
|---|---|---|
|
Pallet
CSW-7V winch, c/w 330m 11.2 dia cable and remote |
120cm x 100cm x 126cm | 465kg |
|
Pallet
CSW-7V winch, c/w 400m 8.2 dia cable and remote |
120cm x 100cm x 148cm | 440kg |
Shipping Notes:
A vehicle with rear flit or fork lift is required for loading and unloading this item.
