QL40-OBI-2G
from Mt Sopris

The QL40-OBI tool is supplied as a bottom sub of the Quick Link (QL) product line. It can either be combined with other QL40 tools to form a tool string or it can be run as a stand-alone tool. The OBI40 is the standalone- non stackable- version.

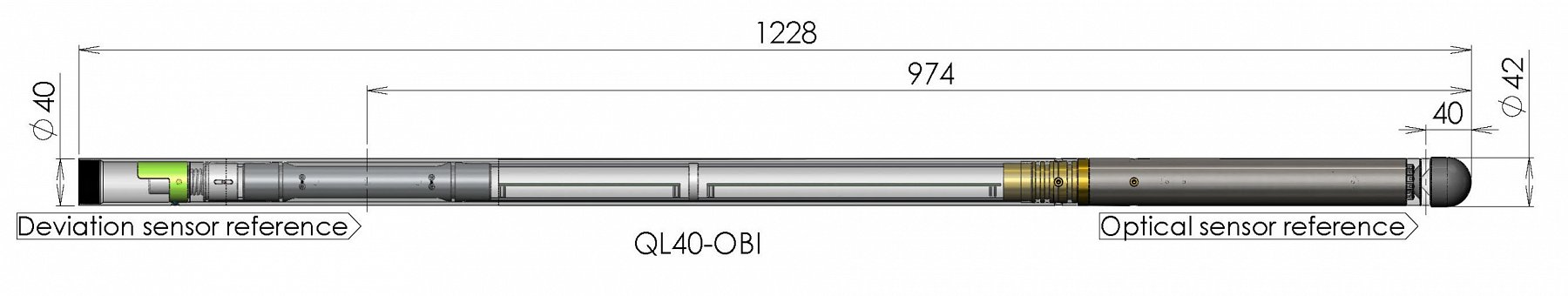

Schematic drawing of QL40-OBI. Image courtesy of Mount Sopris Instruments.
Schematic drawing of QL40-OBI. Image courtesy of Mount Sopris Instruments.

Designed to complement the ALT Acoustic Televiewers (ABI) in dry well situations, or in clear water, the tool operates with the ALTLogger and MATRIX logging systems. They can be run on any standard wireline (mono, 4 or 7 conductor, coax). It includes a high precision deviation sensor (APS544) allowing accurate orientation of the image and borehole. The OBI incorporates a high resolution, high sensitivity CCD digital camera with matching Pentax optics. The Q40OBI is commonly deployed as part of fracture detection and evaluation, detection of thin beds, bedding dip, Lithological characterisation and to determine true colour rock fabric.

Through including a precise orientation package, consisting of a 3-axis magnetometer and 3-axis accelerometer, it is possible to orientate images, and thus bedding plains and fractures, to the correct azimuth.

Applications

  • Detailed and oriented structural information
  • Reference for core orientation
  • Fracture detection and evaluation
  • Breakout analysis
  • Detection of thin beds
  • Determination of bedding dip
  • Lithology and mineralogical characterisation
  • Casing inspection

WellCAD Image & Structure Interpretation (ISI) Workspace

The Image & Structure Interpretation (ISI) module for WellCAD provides a comprehensive tool kit for analysing image logs. Image courtesy of Mount Sopris Instruments.
The Image & Structure Interpretation (ISI) module for WellCAD provides a comprehensive tool kit for analysing image logs. Image courtesy of Mount Sopris Instruments.

Product Dimensions

Physical Dimensions (L x W x H) Weight
QL40-OBI-2G (instrument only) 147cm x 4.2cm x 4.2cm 5.3kg

Technical Specifications

Optical Sensor: 1/3″ high sensitivity CMOS digital image sensor.
Azimuthal Resolution: 120, 180, 360, 600, 900, 1800 pixels.
Vertical Resolution: User definable minimum 1 mm. Function of depth encoder resolution.
Color Resolution: 24 bits RGB true colors.
Responsivity: 5.48 V/lux-sec
Light Source: High efficiency LEDs.
Color Temperature: 5600 K.
Light Intensity: 750 lm.
Color Rendering Index: 80%
Power Max: 5.60 W.
Orientation Sensor: APS 544 – 3-Axis Magnetometer and Accelerometer.
Inclination Accuracy: ± 0.5 º
Azimuth Accuracy: ± 1.2 º.
Max. Tempture: 70ºC
Max. Pressure: 200 bar.

Shipping

Contents Dimensions (L x W x H) Weight
Case1
Optical Televiewer
215cm x 32cm x 16cm 30kg
