QL40-CAL
from Mt Sopris

The QL40CAL sub records a single continuous borehole diameter log by means of three mechanically coupled arms in contact with the borehole wall. The 3 arm caliper measurement is a useful first log to determine the borehole condition before running other more costly probes or those containing radioactive sources. Opening and closing of the caliper arms is surface controlled from the MATRIX LoggerSuite application, allowing the probe to be run into the borehole with the arms closed. Once positioned at the bottom of the borehole, the caliper arms are opened, and the spring-loaded arms respond to borehole diameter variations as the probe is moved up the borehole.

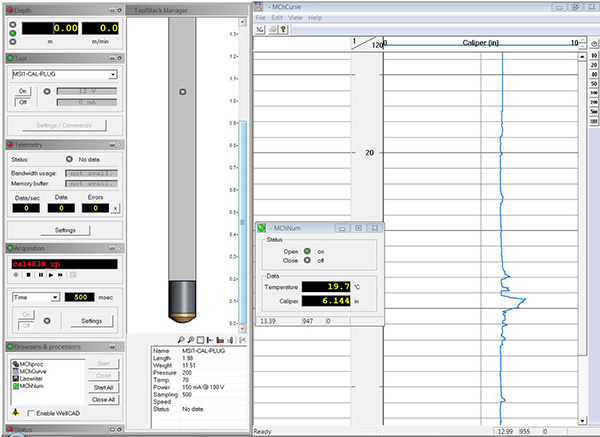

Example of real-time Caliper log when recorded in MATRIX. Image courteous of Mount Sporis Instruments Inc.

Other QL probes commonly stacked with the QL40CAL include the QL40GR (Natural Gamma), QL40RES (Multi-point Resistivity), QL40IP (Induced Polarisation), and the QL40FTC (Temperature & Fluid Resistivity)

Product Dimensions

Physical Dimensions (L x W x H) Weight
QL40-CAL (instrument only) 194cm x 4.2cm x 4.2cm 10kg

Technical Specifications

Pressure Rating: 200 Bar (3000 PSI).
Operating Temperature: Up to 80ºC.
Sensor: Micro-Processer Controlled Potentiometer.
Accuracy: 1mm.
Resolution: 0.5mm

Shipping

Contents Dimensions (L x W x H) Weight
Case1
QL40-CAL
215cm x 32cm x 16cm 30kg
