Syscal WiConnect
from Iris Instruments

The WiConnect device allows a wireless connection from your tablet, smartphone or laptop. Perform a Rs-Check, choose your sequence and start, stop, pause the acquisition or check the data quality from the confort of any shelter located around your Syscal/Elrec. With the WiConnect device, download automatically your data. Save it to your cloud server or email it to your office for faster reporting. The WiConnect device allow to control and dowload data from a webpage and can be used from any plateform (Windows, Android, Apple, Linux) and any device featuring a Wi-Fi connection.

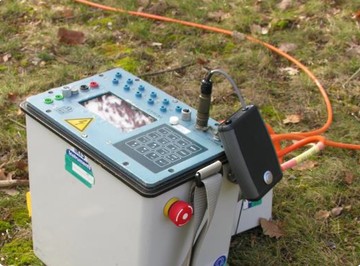

Syscal WiConnect connect to a Syscal Pro.
Syscal WiConnect connect to a Syscal Pro.

Features

  • Save data directly to the cloud, or send via email
  • Download data to any smartphone, tablet or Laptop
  • Configure a Syscal Meter using all the functional tools offered by ElectrePro
  • View and analyse data in real time
  • Edit and adapt roll-a-long sequences to accommodate obstacles
  • Compatible with Syscal Junior, R1+, Pro and Elrec Pro

New versions of most IRIS Instruments software allow for communicating by Wi-Fi (Prosys II, Electre Pro, Fieldview, Comsys Pro)

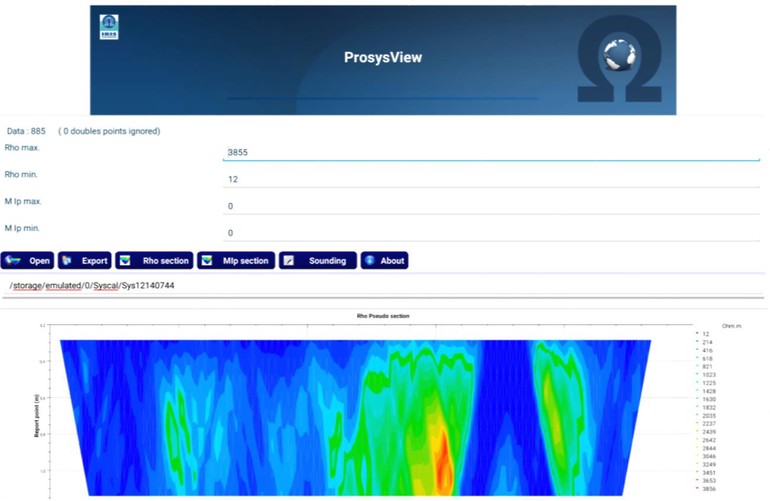

Syscal WiConnect Data acquisition screen. Image Courtesy of Iris Instruments.

Product Dimensions

Physical Dimensions (L x W x H) Weight
Syscal WiConnect (instrument only) 12cm x 8cm x 2.5cm 200g

Technical Specifications

Battery: Internal rechargeable battery (micro USB)
Autonomy: 8 hours
